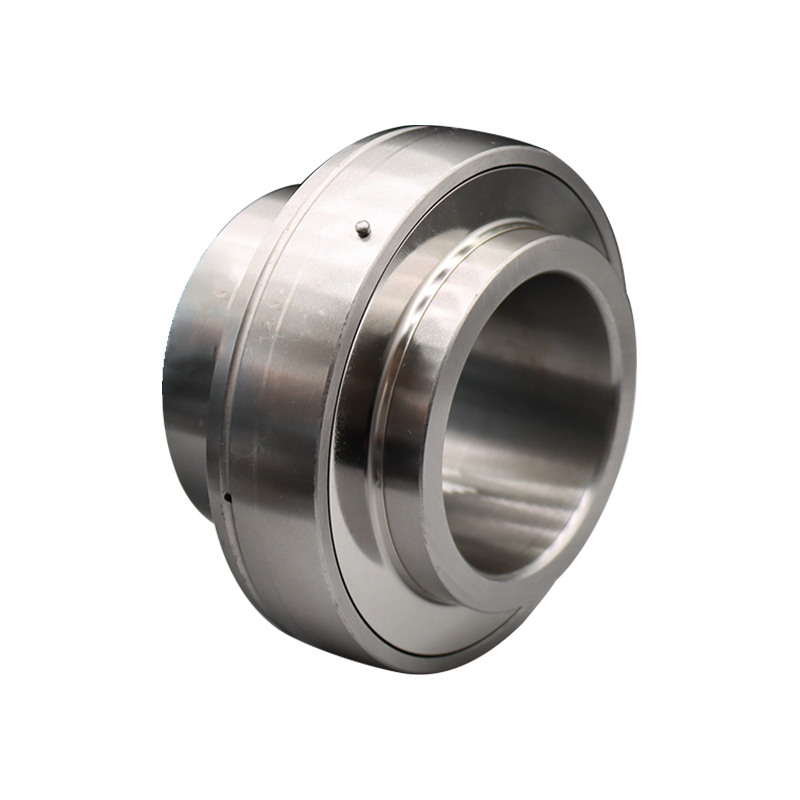

Bantalan Seri Seri UC200 adalah bantalan rolling berkinerja tinggi yang banyak digunakan dalam peralatan mekanis. Fitur desainnya meliputi kemudahan pemasangan dan pemeliharaan, membuatnya cocok untuk berbagai lingkungan kerja. Seri UC200 biasanya memiliki struktur perumahan terintegrasi yang dapat menahan beban radial besar dan beban aksial sambil memberikan kemampuan anti-fouling yang baik. Baja berkualitas tinggi digunakan di dalam bantalan untuk memastikan ketahanan aus yang tinggi dan umur layanan yang panjang. Rangkaian bantalan sisipan ini juga hadir dalam berbagai model dan ukuran untuk memenuhi kebutuhan aplikasi yang berbeda dan umumnya digunakan dalam mesin pertanian, menyampaikan peralatan dan mesin industri. Selain itu, bantalan seri UC200 dilengkapi dengan berbagai jenis perangkat penyegelan untuk mencegah kebocoran minyak dan intrusi kontaminan eksternal, lebih lanjut meningkatkan stabilitas dan keandalan kerja mereka.
Parameter Produk

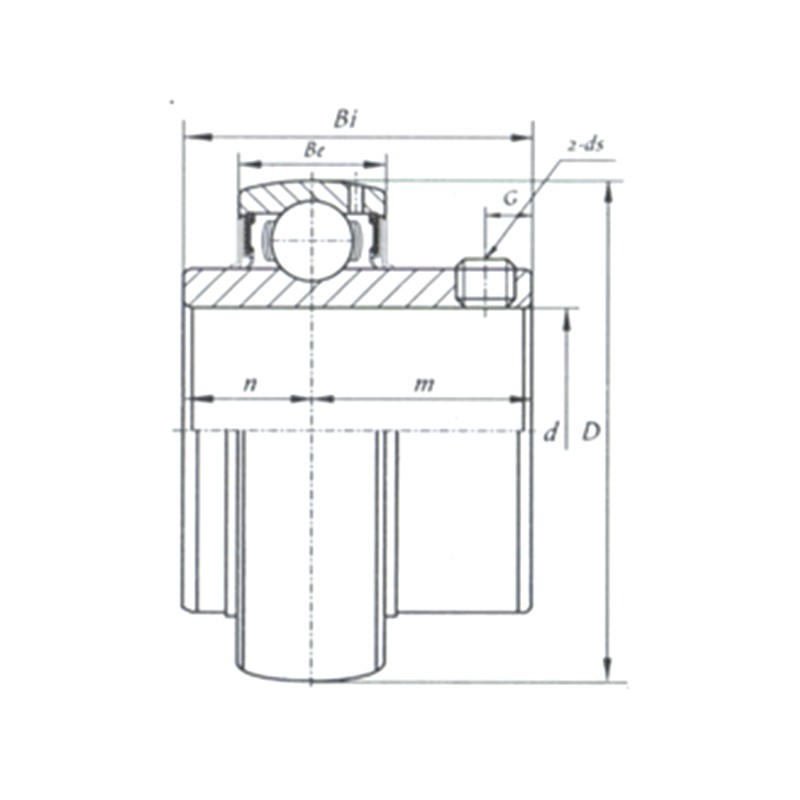

| BaNtalan No. | D | DiMensi （mm） | |||||||
| (mm) | (di dalam.) | D | Dua | Menjadi | n | m | G | ds | |
| UCW201 | 12 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UCW202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UCW203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6X1.0 | |
| UC201-8 | 12.7 | 0.5 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6X1.0 | |
| UC202-10 | 15.875 | 0.625 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6X1.0 | |
| UC203-11 | 17.463 | 0.6875 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC204-12 | 19.05 | 0.75 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6X1.0 | |
| UC205-14 | 22.225 | 0.875 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC205-15 | 23.813 | 15/16 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC205 | 25 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | M6X1.0 | |
| UC205-16 | 25.4 | 1 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC206-18 | 28.575 | 1.125 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | M6X1.0 | |
| UC206-19 | 30.163 | 1.1875 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC206-20 | 31.75 | 1.25 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC207-20 | 31.75 | 1.25 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207-21 | 33.338 | 1.3125 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207-22 | 34.925 | 1.375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | M8X1.0 | |
| UC207-23 | 36.513 | 1.4375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC208-24 | 38.1 | 1.5 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24unf |
| UC208-25 | 39.688 | 1.5625 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24unf |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8X1.0 | |
| UC209-26 | 41.275 | 1.625 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209-27 | 42.863 | 1.6875 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209-28 | 44.45 | 1.75 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8X1.0 | |
| UC210-30 | 47.625 | 1.875 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210-31 | 49.213 | 1-15/16 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | M10x1.25 | |
| UC210-32 | 50.8 | 2 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC211-32 | 50.8 | 2 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211-34 | 53.975 | 2.125 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1.25 | |
| UC211-35 | 55.563 | 2.1875 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC212-36 | 57.15 | 2.25 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1.25 | |
| UC212-38 | 60.325 | 2.375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212-39 | 61.913 | 2.4375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213-40 | 63.5 | 2.5 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1.25 | |
| UC214-44 | 69.85 | 2.75 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | 7/16-20unf |
| UC214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12X1.5 | |
| UC215-47 | 74.613 | 2.9375 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12X1.5 | |
| UC215-48 | 76.2 | 3 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC216-50 | 79.375 | 3.125 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | 7/16-20unf |
| UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | M12X1.5 | |
| UC217-52 | 82.55 | 3.25 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | 7/16-20unf |
| UC217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | M12X1.5 | |
| UC218-56 | 88.9 | 3.5 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | 1/2-20unf |
| UC218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | M12X1.5 | |
